1000F Complete Irrigation Kit w/ Pump

$999.00
Title:
1000F Complete Irrigation Kit w/Pump
Description:

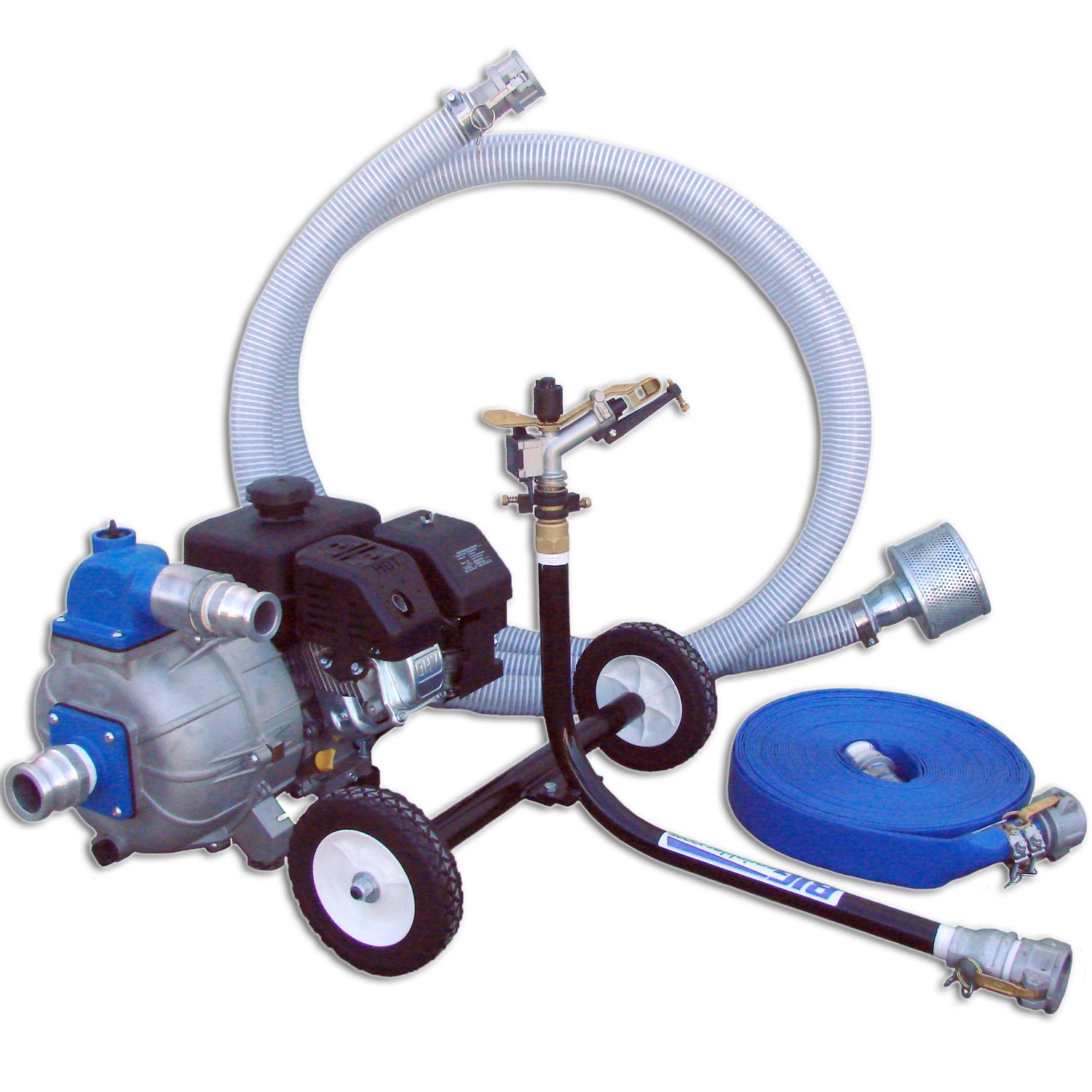

The Complete BigSprinkler Irrigation Kit ready to set up and start irrigating from your pond, reservoir, or stream in minutes!  This kit includes our 1000F Sprinkler Cart that is capable of up to 120 ft. diameter wetted circle, 15 ft. of 2" suction hose with strainer, 100 ft. of heavy 1.5" discharge hose with quick connects, and a heavy duty gas driven pump.  The pump is a reliable 6.5 Kohler and self-priming medium pressure 1.5" pump capable of providing high volumes and pressures up to 50 psi.

Our pre-assembled pump kits are quick and easy to setup!  You can be irrigating in literally minutes from the time you receive your kit.  First, unroll and quick connect the 100 ft. hose provided from the pump to the sprinkler cart, quick connect the 15 ft. suction hose provided, prime and start the pump....and watch the water fly!  1000F irrigation cart is supplied with quick connect fitting that attaches to the hose and a full range of nozzles so that you can meet your desired water pattern and application.

Specifications:

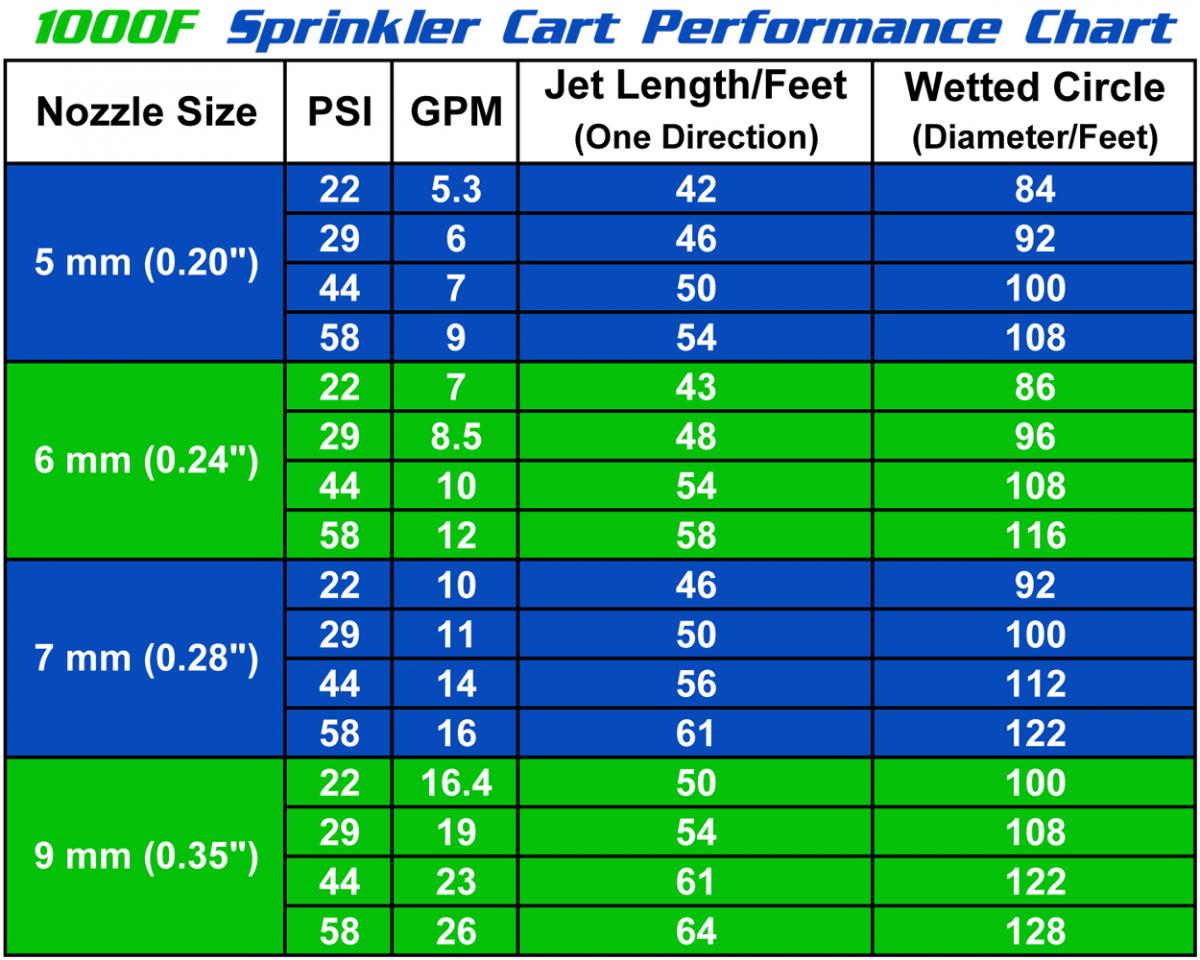

Sprinkler Cart Performance:

  • Flow Range:  5-25 Gallon per Minute
  • Coverage:  Up to 120 Feet Diameter Wetted Circle

Pump Performance:

  • Max Flow:  10 gpm to 180 gpm
  • Max Pressure:  50 PSI @ 5 Gallons per Minute

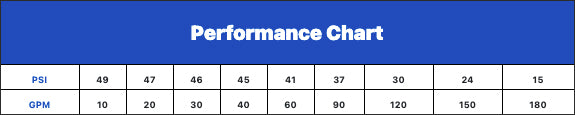

(Click here to see pump performance chart)

**Pump and sprinkler performance may vary due to certain atmospheric conditions, elevation, distance, etc.  Pump performance data provided is at 5 feet suction lift.



Features and Benefits:

 1000F Sprinkler Cart Information:

  • Heavy Duty 1" Steel Body w/ Solid Axle
  • Commercial Grade Full or Part Circle Sprinkler

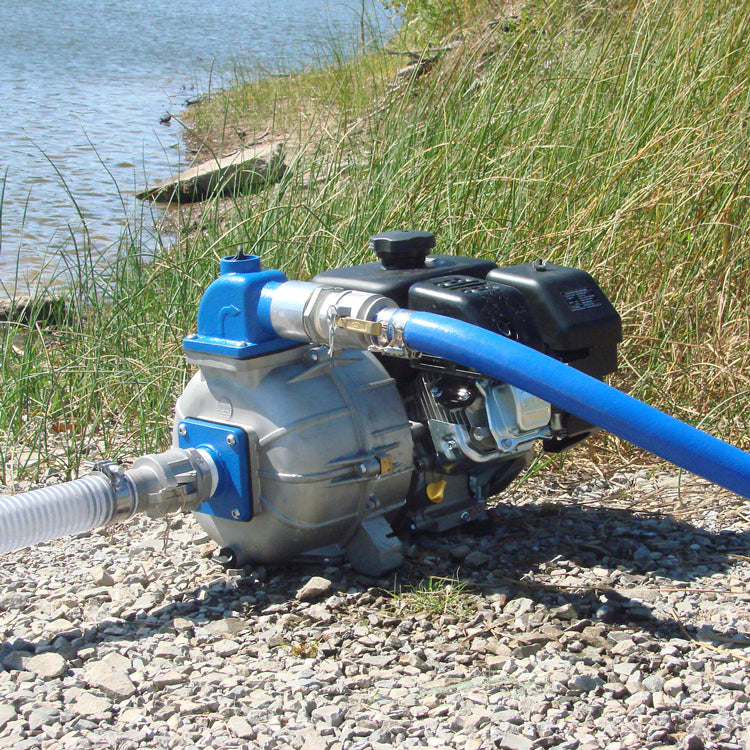

Pump Information:

  • 6.5 HP Kohler Medium Pressure Pump
  • IPT Self-Priming High Pressure Cast Aluminum Pump & Impeller
  • 1.5" Ports, Silicon-Carbide Mechanical Seal

Discharge Hose Information:

  • Medium Blue 1.5" x 100' Hose w/ Quick Connect Fittings.

Suction Hose Information:

  • Spiral Helix Reinforced Contractor Grade Rubber Non-Collapsible Suction Hose w/ Suction Screen



Primary Applications:
  • General Irrigation Use
  • Acreage or Garden Irrigation
  • Hobby Farm Irrigation
  • Parks & Recreational Areas
  • Campgrounds
  • Wildlife Food Plots
  • Horse Pasture & Arenas
  • Mining Dust Suppression
  • Fire Protection
