14 HP High Pressure Kohler Pump

Pump - High Pressure FP25K 14HP Pump-Hand Prime

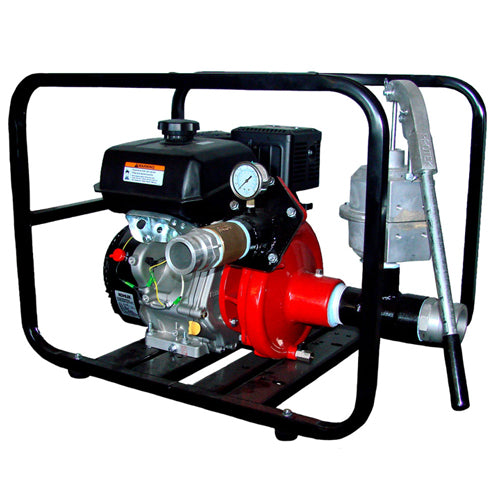

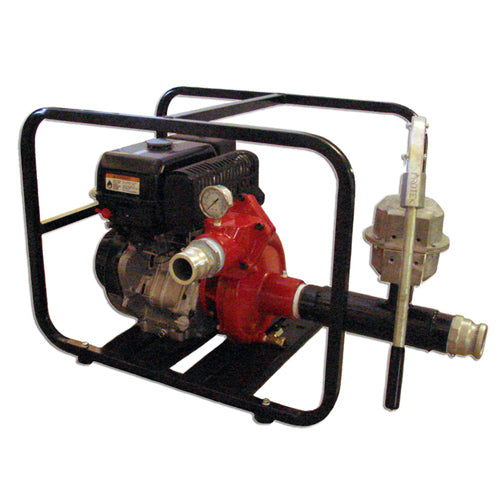

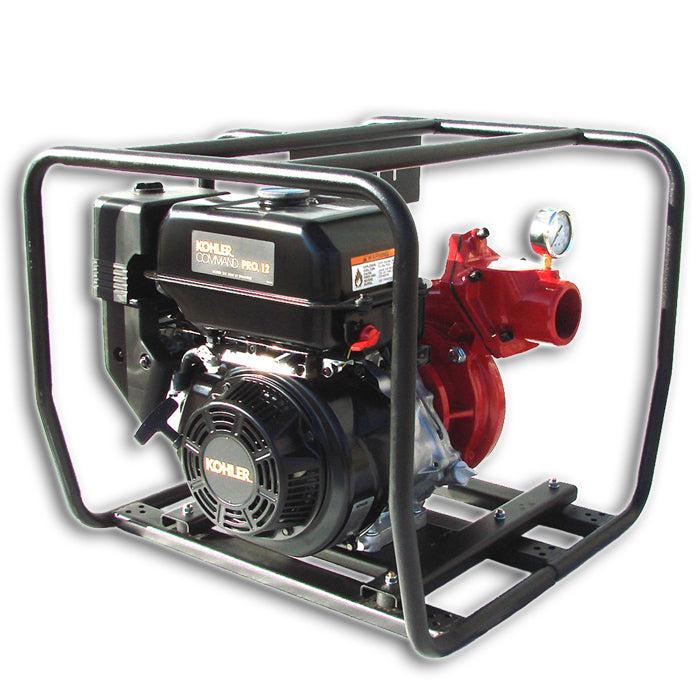

The 14 HP Kohler High Pressure-High Volume Pump features a high performance, large diameter closed impeller design and a simple to use diaphragm priming system for quick priming.  This pump assembly is mounted in a rugged powder coated steel roll cage and a convenient pressure gauge is provided on the discharge fitting.  Pump pressures as high as 120 psi and volumes up to 180 gpm can be reached for high performance on big irrigation sprinklers!   The pump end assembly is a quality American made cast aluminum pump case, integrated discharge check valve assembly, and special machined pump impeller.  Engine is a reliable 14HP Kohler Command Pro recoil start engine with low oil safety shut down system.

This is a very unique pump package that is specially designed for your high pressure irrigation applications and is not comparable to most common 14 HP low pressure "water transfer" pumps sold in stores.  Standard with 2.5" discharge (adaptable to 2" or 3") and Upgraded to a 3" suction fitting with integrated diaphragm priming system.  This pump is featured in our Bigsprinkler 2000S Complete Irrigation Kit and may also be used with a number of different large volume sprinklers!  A very well made pump with quality components and big performance!!

Select specifications tab to view a full pump performance chart with the full range of pressures at the given flow rates for matching up to your sprinkler system capacity.

  • Net Weight:  128 lb.
  • Net Size:  28” x 24” x 23”

Performance Chart


**Pump and sprinkler performance may vary due to certain atmospheric conditions, elevation, distance, etc.   Pump performance data provided is at 5 feet suction lift.

Features and Benefits:
  • 14 HP Kohler Command Pro Engine Recoil Start
  • 3” Standard Female Pipe Thread Suction & 2.5" Standard Female Pipe Thread Discharge
  • Cast Aluminum High Pressure Pump Body & Impeller w/ Stainless Steel Bushing
  • Heavy, Powder Coated Steel Roll Cage with Vibration Isolators

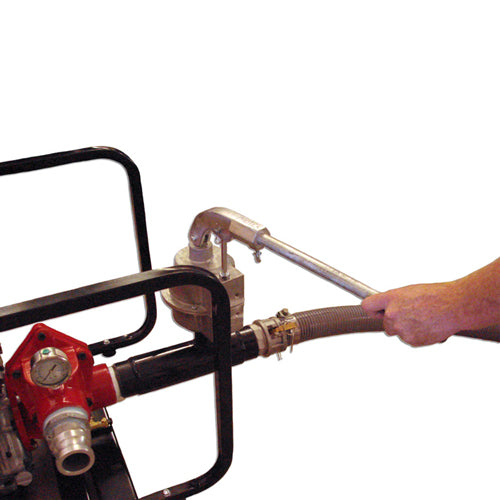

  • Diaphragm Priming System for Easy Prime
Primary Applications:
  • High Pressure Residential, Commercial, & Agriculture Irrigation
  • Crop Irrigation
  • Dust Suppression
  • Fire Fighting
  • Sports Field Irrigation
